Product Description

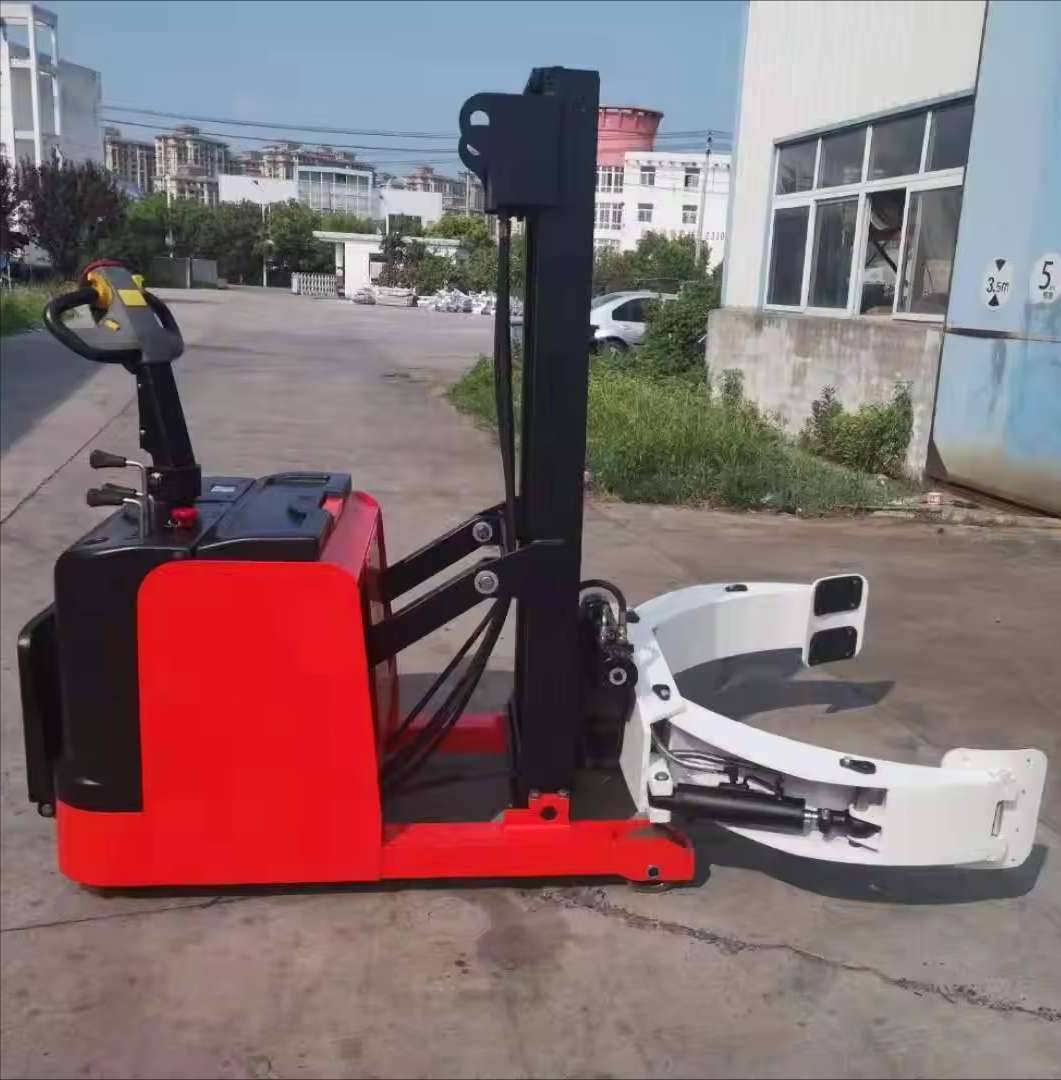

1.5ton 4000mm Full Electric Stacker with adjustable clamp for handling Paper Drums or Cloth Rolls
The Full Electric Stacker equipped with an adjustable clamp is a versatile and efficient material handling solution. This state-of-the-art machinery boasts a fully electric drive system, ensuring smooth and quiet operation while minimizing environmental impact. The adjustable clamp feature allows for precise gripping and secure lifting of various-sized loads, enhancing its versatility across diverse industries. Whether in warehouses, factories, or logistics centers, this stacker significantly improves productivity by simplifying the stacking, unloading, and repositioning of goods. Its ergonomic design and user-friendly controls make it a favorite among operators, ensuring both safety and ease of use.
Main Features
1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.
4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.
Specification
| Rated load | kg | 500/1000/1500 |
| Max height of clamp | mm | 1500/3000/customized |
| Min height of clamp | mm | 100 |
| Load center | mm | 500 |
| Operation way | | Electric moving, lifting, rotating, graping |
| Turning radius | mm | 1520 |
| Aisle width | mm | 2500 |
| Length | mm | 1900 |
| Width | mm | 810 |
| Height | mm | 1900 |
| Mast | | 1-stage/2 stage |
| Adjustable extent of clamp | mm | 700-1200 |
| Rotation angle | ° | 90/180/360 |
Running speed (load/unload) | km/h | 4.3/4.5 |
| Hoisting speed(load/unload) | mm/s | 110/160 |
| Descent speed(load/unload) | mm/s | 150/130 |
| Climbing capability
(load/unload) | % | 5/8 |
| Braking mode | | Electronic brake |
| Tyres,material | | Pu |
| Hydraulic motor | kw | 2.5kw |
| Battery | v/ah | 24/210Ah |
| Charger | v/a | 24v/30 |
| Weight | kg | 1000 |
Benefits of Using Electric Clamping Stackers
(1)Efficient and quick:electric clamping stacker can quickly grab and stack long items to improve working efficiency.
(1) Flexible and versatile: electric clamping stacker can be operated according to the size, weight, length and other characteristics of the items to choose the appropriate clamping jaws and fork arms, it has a strong adaptability.
(3) Safe and reliable: the electric clamping stacker is controlled by hydraulic system, which is simple, safe and reliable.
Electric clamping stacker have a wide range of applications, mainly used for handling and stacking wood, plate, steel, paper rolls, cotton rolls and other long cylindrical items. In the wood processing, steel processing, construction materials and other industries have a wide range of applications. At the same time, the clamping stacker can also be used for loading and unloading of goods, warehouse management, etc. It has high economic and social benefits.
Taizhou Kayond Machinery Co.,Ltd
Taizhou Kayond Machinery Co.,Ltd is a national high-tech enter
prise specializing in research,development,production,sales and
service of material handling equipment and parts.Such as hydraulic
pallet lift stacker, electric forklifts, hand pallet trucks,manual
stackers ,drive wheels and control handles. Started from 1998,
Kayond owns advanced forklift manufacturing technology, perfect
processing equipment and product testing center. Kayond has
obtained many invention patents and certificates. The main products
are hand pallet truck, manual stacker, electric pallet truck,
electric stacker, reach stacker, forklift truck, and other
customized machine, which are widely used in modern logistic area.
